005-5192B | WHIRL-SYSTEMS - Rudolf Koller

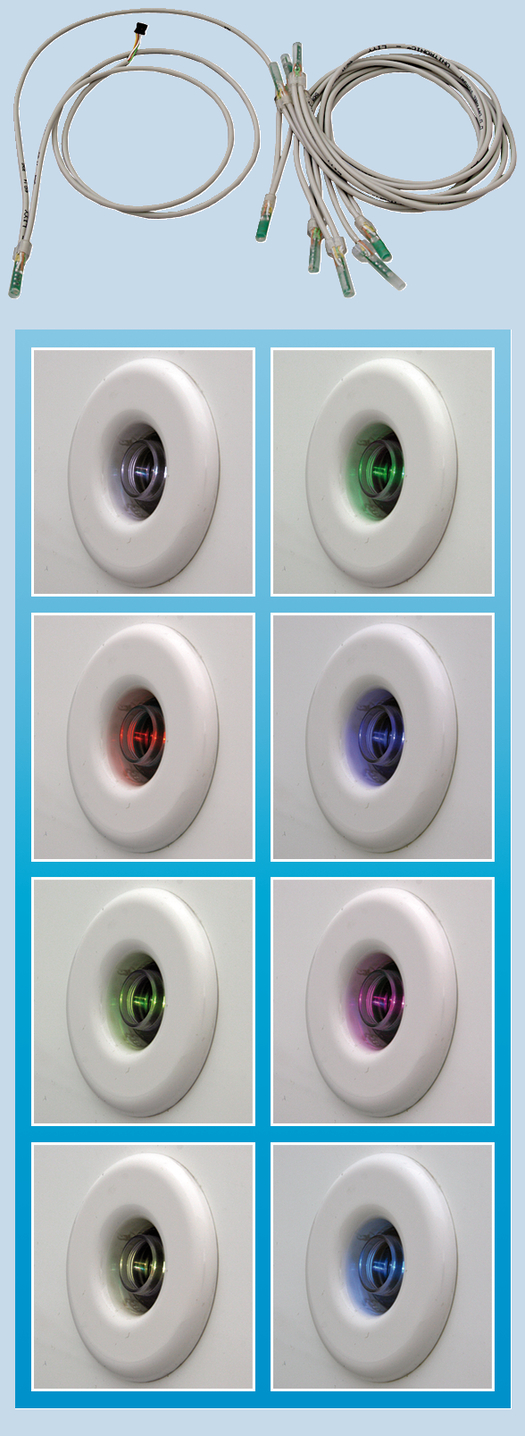

Effect light chain for jets series 5192
005-5192B

material	plastic
line voltage	5V DC
nominal power	250 mW per light source
system of protection	IP 68
length of the element	40 mm
light sources	6 pcs.
suitable for:	jets: P-0006-6 P-0017-6
weight	45 g

order num.

005-5192B

Info

light delivery bent

feed cable with connector: 2 m up to the first light source, distance between the light sources: 0,6 m cable, between the 3. and 4. light source: 1,5 m cable

suitable for:

jets:
P-0006-6
P-0017-6

suitable for:

Electronic control panel type 240 8201A

Electronic control panel type 240-8132A

Electronic control panel type 240-9043A-SXX

Electronic control panel type 240-9043C-SXX

Electronic control panel type 240-9036A-SXX

Electronic control panel type 240-9036B-SXX

Special design on inquiry!
