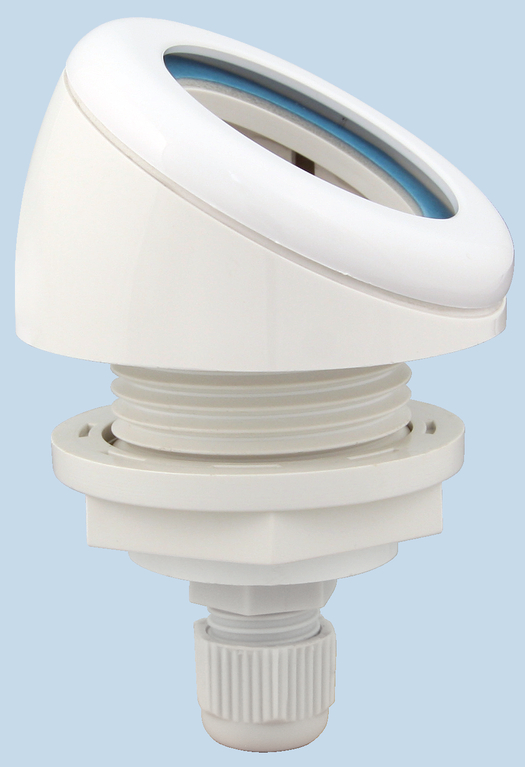

Button body swivelling 326XX
P-W-326XX

material	plastic
fitting length	48 mm without cable
wall thickness	2 - 12 mm
drill Ø	35 mm
system of protection	IP 55
weight	44 g
color	white

order num.

P-W-326XX

consists of:

button ring, adhesive ring, body, nut, mounting screw connection

suitable for:

all electronic buttons Ø 40 mm

When placing your order, please indicate the article numbers of the body and push button as follows:

(e.g. P-C-326+1B = P-C-3261B)

	Order No.	hint
	Key 0121-4-20 P-0121-4-20	for button body swivelling
	Milling cutter WZ-340	arbor Ø 34 mm cutter Ø 46 mm suitable for: button body swivelling: P-X-326XX, X-327XX multi button: P-X-3281H, P-X-3281G, P-X-3281I, P-X-3281V, P-X-3361H-V1, P-X-3361H-V2, P-X-3361A comfort button swivelling: X-012-3010B steam jet: P-W-901 weight: 545 g
	Hole saw large 30 - 43 mm WZ-35	Ø 35 mm suitable for: button body swivelling: P-X-326XX, X-327XX multi button: P-X-3281H, P-X-3281G, P-X-3281I, P-X-3281V, P-X-3361H-V1, P-X-3361H-V2, P-X-3361A comfort button swivelling: X-012-3010B steam jet: P-W-901 weight: 92 g
	Nest for hole saw large WZ-A35 WZ-A35	suitable from 32 mm diameter of the hole saw
